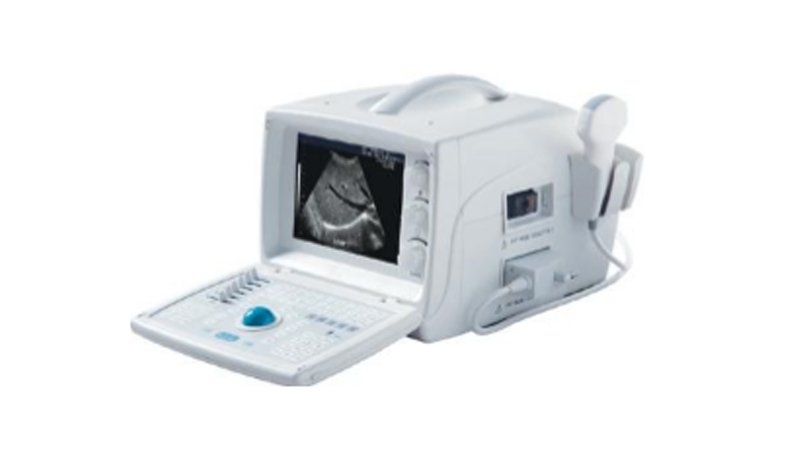

iL-3900D1 Veterinary Full Digital Ultrasonic Diagnostic System


  • Abdominal, Seminal and Small organs examination for Bovine, Equine, Ovine, Canine, Feline and others


  • 10.4 inch VGA High resolution non-interlaced monitor, Multi-frequency transducers, Real-time zooming, 256-frame Cine loop, Two probe connectors, Veterinary software.

Technical Specifications :

Image Mode : B, B/B, 4B, B/M, M
Scanning Mode : Convex and Linear array
Multi-frequency Transducers : 2.5-8.5 MHz
Image Magnification : ×1.0, ×1.2, ×1.5, ×2.0
Electronic Focus : Acoustic lens focus, single focus and multiple focus
Max Display Depth : 220mm
Depth Enhancement / Pan Function : Yes
Local Zoom : Yes
Frame Correlation Function : Yes
Adjustment Total Gain : Yes
Dynamic Range : Yes
Gray Scale : 256
Display : 10.4 inch SVGA High resolution non-interlaced monitor
Probe Connectors : 2 (standard)
Scanning Frequency : 2.5~8.5 MHz (depends on probes)
Image Reverse : Left / Right, Up / Down, Positive / Negative
Comment : Time, Date, Week, Doctor's name, Patient ID, Age, Sex, Focus, Transducer type, Transducer frequency, Gray scale, Avg. Value
Body Marks : 5
Power Supply & Consumption : AC 110V,60Hz; AC 220V,50Hz . < 110 VA
Dimensions : 490x380x420mm (L x H x W)
Net Weight : approx. 9.5kg

Standard configuration:

  • 10.4 inch non-interlaced monitor, 256-frame cine loop, Two probe connectors, 3.5 MHz electronic micro-convex transducer(2.5-5.0MHZ)


  • High-frequency linear probe, Rectal probe, Electronic convex probe, Electronic trans vaginal probe Trolley

Winning Advantages:

  • 10.4 inches VGA monitor, Multi-segment TGC adjustment, Multi-frequency probes, Real-time zooming, Obstetrics measurement : Canine, Feline, Equine, Ovine, Bovine

" Ultrasound Scanner Machines will be Sold & Purchased strictly as per the applicable Guidelines of PC & PNDT."
