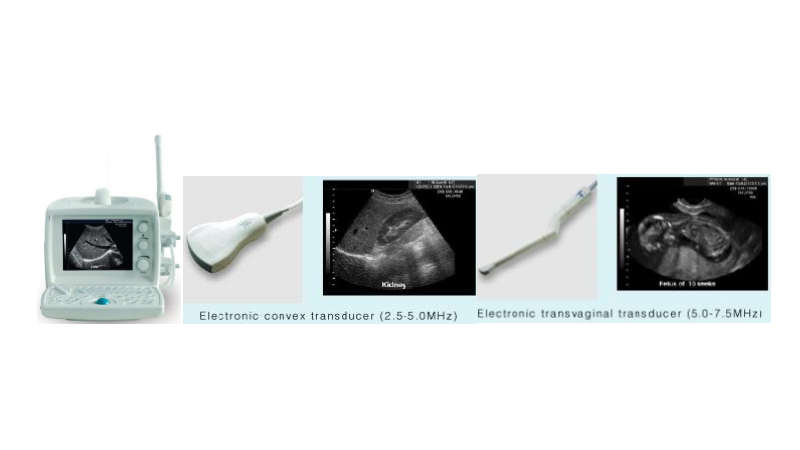

iL-3000D1 Table Top Ultrasonic Diagnostic System

Apparatus Featuresn:

  • 10.4 inch SVGA high resolution non-interlaced monitor; Multi-frequency transducers; Real-time zooming, 256-frame cine loop ; Permanent storage; USB port ; Multi-segment TGC adjustment

Software functions:

  • General measurement : Distance, Circumference, Volume, Angle, Heart Rate and etc.
  • Obstetrics measurement software : GS, CRL, BPD, AC, HC, FL, AFI, EDD and calculating foetus' weight, pregnancy week, fetal physiological rating according to the previous measurements

Technical specifications :

Display : 10.4 inch VGA high resolution non-interlaced monitor
Scanning mode : Electronic linear array, electronic convex array
Imaging mode : B, B/B, B/M, M, 4B
Gray scale : 256 levels
Transducer frequency : 2.5-8.5 MHz
Magnification : x1.0, x1.2, x1.5, x2.0
Electronic focus : Acoustic lens focus, Single focus and Multiple focus
Max. display depth : 220mm
Frame correlation function
Adjustment of total gain and dynamic range ; Depth Enhancement / Pan Function ; Local zoom
Gain : 0-99 dBdigital adjustable
Probe connector : 2(standard)
Storage : 8 images permanent storage
USB port :
Scanning frequency : 2.5-8.5 MHz(depending on transducers)
Dynamic focusing : Dynamic aperture and dynamic tracing imaging

Winning Advantages:

  • 10.4 inches VGA monitor
  • Dismountable and rechargeable lithium battery
  • Multi -segment TGC adjustment
  • Multi - frequency probes
  • Real-time zooming
  • Excellent image quality
  • Super stability
  • High cost performance

" Ultrasound Scanner Machines will be Sold & Purchased strictly as per the applicable Guidelines of PC & PNDT."
