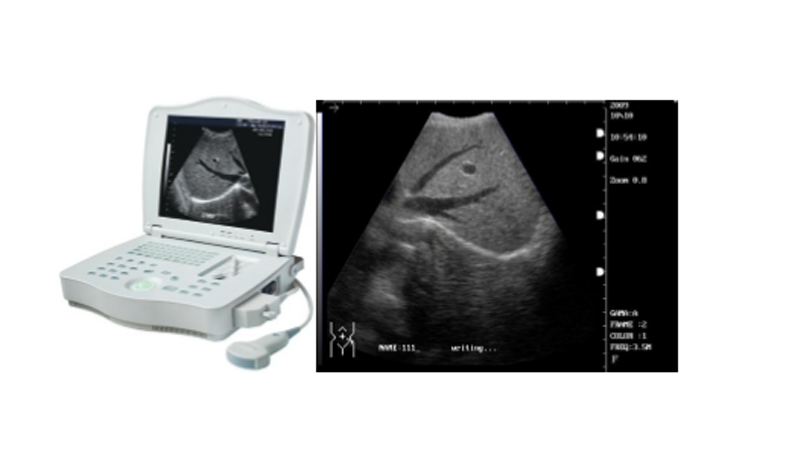

iL 3000E1 Full Digital Ultrasonic Diagnostic System


  • Laptop design; 15 inch High-resolution LCD; 8 TGC controls; High-quality images; Broadband multi-frequency transducers; Cine loop; Two USB ports; Two probe connectors; Pseudo colour; 256-frame cine loop; Two probe connectors; 3.5MHz electronic convex transducer (2.5-5.0MHz); THI; Histogram

Technical Specifications

Display : 15 inch High-resolution LCD
Scanning Mode : Electronic convex array, Electronic linear array
Display Mode : B, B/B, B/M and M
Magnification : x0.8, x1.0, x1.2, x1.3, x1.5, x1.6, x1.8, x2.0
Gray Scale : 256
Resolution : Horizontal:≤2mm, Vertical: ≤1mm
Geometrical Precision : ≤5%
Blind Area : ≤3mm
TGC : 8-section TGC adjustment
Pseudo Colours : Yes
Display Depth : 240mm and depth could be increased
Image Polarity : Left / Right, Positive / Negative and Up / Down
Cine loop : Successive 256 frames
Output Interface : 3 output interfaces: 1 VGA and 2 PAL video signal output
Power Supply Range : AC 110V-220V±10%, 50Hz /60Hz,
Y Adjustment : A,B,C,D,E,F,G,H
Pseudo colour : Eight kinds

Winning Advantages:

  • 15 inch LCD High Resolution LCD Display, Laptop design,
  • ARM circuit platform
  • THI Frequency
  • Histogram
  • Double probe connectors
  • Double USB ports

" Ultrasound Scanner Machines will be Sold & Purchased strictly as per the applicable Guidelines of PC & PNDT."
