• iDR is the digital imaging system composed of a digital Flat Panel Detector(FPD) and an imaging workstation with software.

• The digital FPD and fully featured imaging software with excellent digital image processing meets most of needs in diagnostic digital radiographic field.

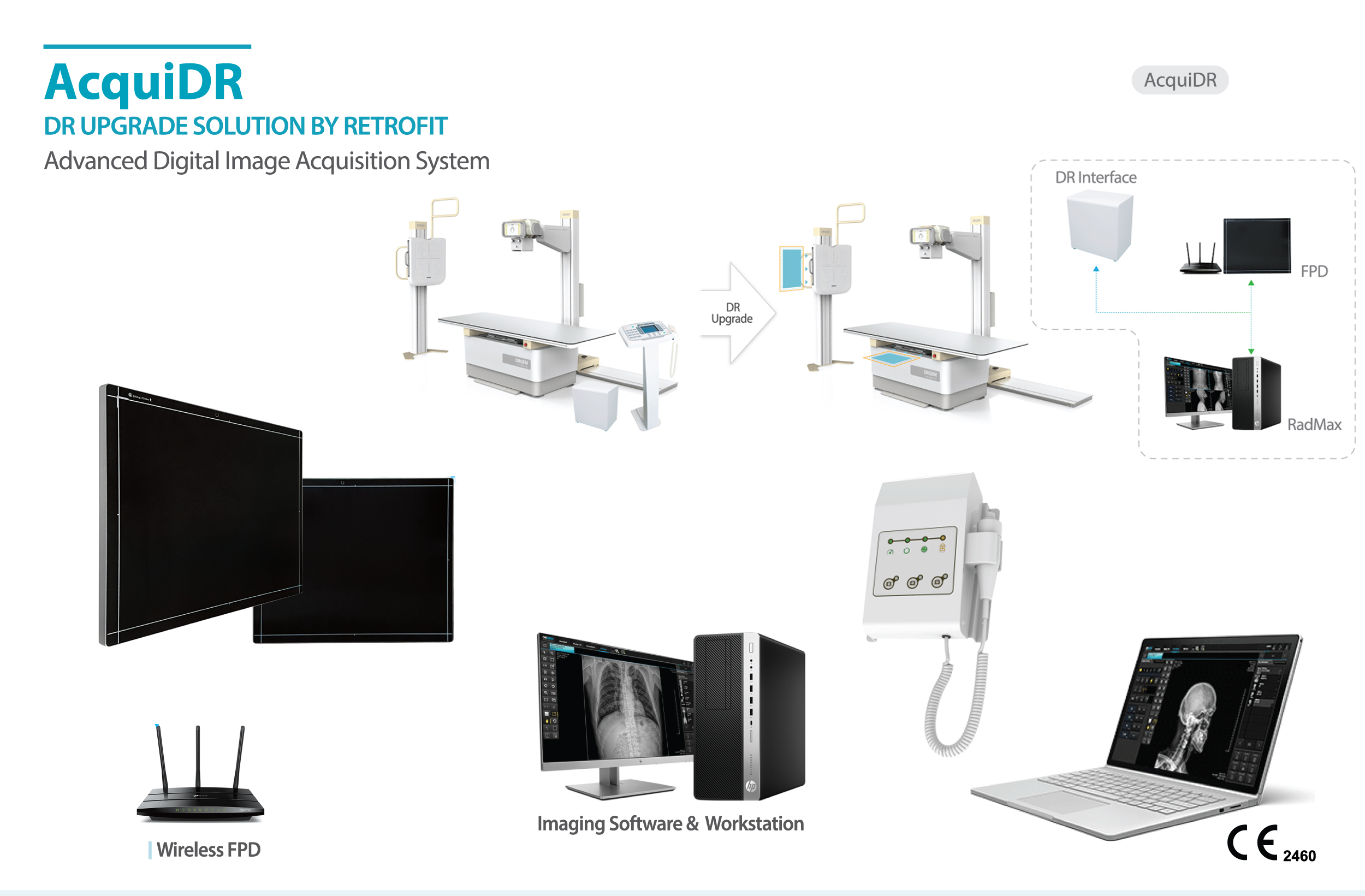

• DR upgrade solution by retrofit.
• Portable and Wireless FPD DR solution for maximum flexibility in virtually all general radiographic specialties.
• Portable and wireless detector fits into most existing analogue x-ray system.
• Faster workflow after DR upgrade.
• Easy to interface with any kind of x-ray generator.

Specifications Flat Panel Detector:

• Wireless
• a - Si TFT with PIN-diode
• Csl or DRZ + (GOS) Scintillator
• 3032(H) x 2436 (V) Active Pixel Area (Csl)
• 3053(H) x 2456(V) Active Pixel Area (DRZ+)
• Pixel Pitch 139 µm
• Limiting Resolution 3.6 lp/mm
• DQE 70% at 0 lp/mm with Csl
• DQE 33% at 0 lp/mm with DRZ+
• 16 bits A/D Conversion
• Gigabit Ethernet Data Output

Specifications Imaging Work Station:

• HP Z240 workstation
• Windows 7 Professional 32- bit OS
• Intel Core i5 CPU or equivalent
• Super-Multi DVDRW SATA
• 500 GB 7200RPM SATA 1ST
• 500 GB 7200RPM SATA 1ST
• NVIDIA NVS 310 512MB
• HP E232 23inch Wide Monitor
• USB Keyboard and Mouse
• Software Included
• DICOM 3.0 Compatible
