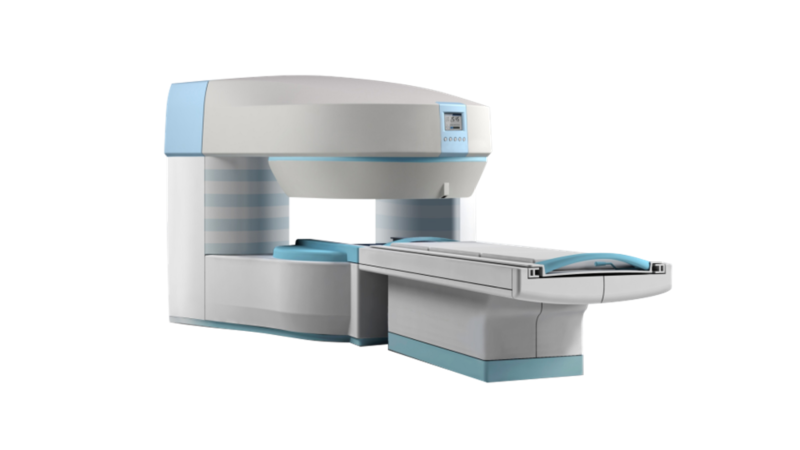

iJ-50
Excellent price performance ratio
- Comprehensive application suite and powerful software included in standard configuration
- Patient friendly appearance : Full open C-shaped magnet
- Minimal sitting requirements : Less than 56 m²
- Low operating Costs : Permanent magnet – no helium
- Higher revenues : Attracted by more patients and referring physicians
- Excellent Return On-Investment : Decreased costs-optimized profitability
- Efficient and Professional service team : 24 hours service on-line
Specifications of BTI-050 System
- Magnet : Operating Field Strength: 0.50 Tesla 5000 Gauss
- Magnet Type : Open design permanent, eddy current free, self-constant temperature
- Magnetic material : Permanent Nd-Fe-B magnet
- Dimension : 2000x2200x2100mm Net Weight : 27,000KG
- Homogeneity : (400mm DSV) ≤ 2.5ppm (Vrms) Shimming : Passive shimming or active shimming
- Patient aperture : 400mm 2.0 Gradient System : Gradient strength : max. 25mT/m (Gx/Gy/Gz)
- Slew rate : 75mT/M/ms (Gx/Gy/Gz) Gradient linearity : ＜5%(400mm×400mm×380mm)
- 3.0 RF System : Central frequency: DC～400MHz Spectrometer: Digital (Four channels)
- Transmitting coil: Flat planar coil Receiving coil phase array coil ( Neck, head, large body, small body, knee, wrist, shoulder )
RF System :
- Central frequency: DC～400MHz
- Spectrometer: Digital (Four channels)
- Transmitting coil: Flat planar coil Receiving coil phase array coil ( Neck, head, large body, small body, knee, wrist, shoulder )
- Optional coils: spine coil, breast coil, ankle coil, etc.
- Max. receiver bandwidth: 1.25Mhz
- Power of transmitter amplifier: 6KW
Computer System:
- Operating system: Windows2000/NT/XP
- CPU: 2.8GHz (Dual Core Processor)
- Hard disk: ≥250GB RAM: 2048MB (1GB)
- Display Device: ≥22'' TFT
- Network & laser printer interface: DICOM3.0
- Software: BASDA BTI-050 Software 5.0
Auto Pre- scan
- Pulse Sequence: Standard IR Spin Echo ( SE 2D/3D) Multi-slice multi-echo (MSME) Gradient Echo (GRE 2D/3D) Steady state process gradient echo( SSPGRE) Fast spin echo (FSE) Single shot fast spin echo(SSFSE) Multi shot fast spin echo (MSFSE) Inversion recovery (IR) Inversion recovery fast spin echo (IRFSE) Short time inversion recovery (STIR) Fluid attenuated inversion recovery ( FLAIR) MRM , MRU, MRCP TOF 2D/3D MRA Diffusion weighted imaging (DWI) Echo planar imaging(EPI)
- Scanning Parameter: Acquisition matrix: 64/128/256/512
Resolution:
- 1mm(head 24cm FOV 256X256)
- 1.5MM(body 30cm FOV 256X256)
- 0.5mm(head 24cm FOV 512X512)
- 0.75mm( body 30cm FOV 512X512)
- Maximum display matrix : 1024x1024 FOV : 20 ～ 400mm
- Slide thickness : (2D)Min.1mm(1mm increment), (3D)Min. 0.5mm
- Slide Orientation : Sagittal, coronal, transversal, any angle any oblique
- Image Type : T1 Weighted imaging, T2 weighted imaging, T2* weighted imaging , proton density imaging; Water Suppressed Image, Fat Suppressed Image, MRM, MRU,MRCP; Magnetic Resonance angiography (MRA), Diffusion Weighted Imaging (DWI)
- Patient Table : Max. Patient load about 240kg; Available with laser light localizer for patient positioning Longitudinal travel range: ≥1650mm Intercommunication between patient and operator: available Power Supply 3N---380V 50Hz 15KVA
Typical Layout:
- Magnet Room About 36㎡(6m×6m);
- Equipment Room About 16㎡(4m×4m);
- Control Room About 4㎡(2m×2m);
- Total MRI-System area About 56㎡.
