Excellent price performance ratio

• Comprehensive application suite and powerful software included in standard configuration

• Patient friendly appearance : Most open C-shaped magnet
• Minimal sitting requirements : Less than 50 m² (538 sq.ft);
• Low operating Costs : Permanent magnet – no helium
• Higher revenues : Attractive to more patients and referring physicians
• Excellent Return On-Investment : Decreased costs-optimized profitability
• Efficient and Professional service team : 24 hours service on-line

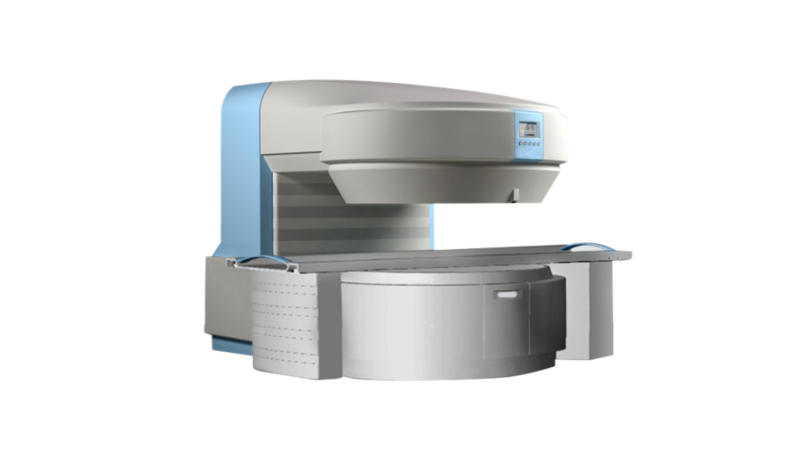

Specifications of BTI-035 System

• Magnet : Operating Field Strength: 0.35 Tesla(3500 Gauss)
• Magnet Type: Full open C-shaped, 2-colum
• Magnetic material: Permanent Nd-Fe-B magnet
• Homogeneity:
  • (400mm DSV) ≤ 2.0ppm (Vrms)
  • (200mm DSV) ≤ ±1ppm (FWHH)
• Shimming: Passive & active shimming
• Patient gap: 400mm(from cover to cover)
• Net Weight: 17,500KGS
• Dimension: 1970mm*1320mm*1820mm
• Gradient System: Gradient strength: max. 25mT/m (Gx/Gy/Gz)
• Slew rate: 75mT/M/ms (Gx/Gy/Gz)
• RF System:
• Spectrometer: Digital (4 channels)
• Transmitting coil : Flat planar coil
• Receiving coils : Phase array coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil, Wrist coil, Shoulder coil) Optional coils: spine coil, breast coil, ankle coil, etc.
• Power of transmitter amplifier : 6KW

Gradient System:

• Gradient strength: max. 25mT/m (Gx/Gy/Gz)
• Slew rate: 75mT/M/ms (Gx/Gy/Gz)

RF System:

• Spectrometer: Digital (4 channels)
• Transmitting coil : Flat planar coil
• Receiving coils : Phase array coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil, Wrist coil, Shoulder coil) Optional coils: spine coil, breast coil, ankle coil, etc.
• Power of transmitter amplifier : 6KW

Computer System :

• Operating system: Windows2000/NT/XP
• CPU: 2.8GHz(Dual Core Processor)
• Hard disk: ≥250GB
• RAM: 2048MB (2GB)
• Display Device: ≥22'' TFT
• Network & laser printer interface: DICOM3.0
• Software: BASDA BTI-035 Software

• Auto Pre- scan

• Pulse Sequence:

• Standard IR Spin Echo ( SE 2D/3D) Multi-slice multi-echo (MSME) Gradient Echo (GRE 2D/3D) Steady state process gradient echo( SSPGRE) Fast spin echo (FSE) Single shot fast spin echo(SSFSE) Multi shot fast spin echo (MSFSE) Inversion recovery (IR) Inversion recovery fast spin echo (IRFSE) Short time inversion recovery (STIR) Fluid attenuated inversion recovery ( FLAIR) MRM, MRU, MRCP TOF 2D/3D MRA Diffusion weighted imaging (DWI) Echo planar imaging (EPI) 7.0 Image: Acquisition matrix: 64/128/256/512

• Inversion recovery (IR) Inversion recovery fast spin echo (IRFSE) Short time inversion recovery (STIR) Fluid attenuated Inversion recovery ( FLAIR) MRM, MRU, MRCP TOF 2D/3D MRA Diffusion weighted imaging (DWI) Echo planar imaging (EPI) 7.0 Image: Acquisition matrix: 64/128/256/512

• Resolution:
  • 1mm(head 24cm FOV 256X256)
  • 1.5MM(body 30cm FOV 256X256)
  • 0.5mm(head 24cm FOV 512X512)
  • 0.75mm( body 30cm FOV 512X512)

• Maximum display matrix: 1024x1024 FOV: 20 ～ 400mm

• Slice Orientation : Sagittal, coronal, transversal, any angle any oblique

• Image Type : T1 Weighted imaging, T2 weighted imaging, T2* weighted imaging, proton density imaging; Water Suppressed Image, Fat Suppressed Image, MRM, MRU, MRCP; Magnetic Resonance angiography (MRA), Diffusion Weighted Imaging (DWI) 8.0 Patient Table: Max. Patient load about 240kg; Available with laser light localizer for patient positioning Longitudinal travel range: ≥1650mm Intercommunication between patient and operator: available, 9.0 Power Supply 3N～380/400V 50/60Hz 10KVA 10.0 Typical Layout: Magnet Room About 30㎡(5m×6m); Equipment Room About 16㎡(4m×4m); Control Room About 4㎡(2m×2m); Total MRI-System area About 50㎡.

• Patient Table : Max. Patient load about 240kg; Available with laser light localizer for patient positioning Longitudinal travel range: ≥1650mm Intercommunication between patient and operator : available, Power Supply 3N～380/400V 50/60Hz 10KVA

• Typical Layout :
• Magnet Room About 30 m2 (5m×6m);
• Equipment Room About 16m2 (4m×4m);
• Control Room About 4m2 (2m×2m);
• Total MRI-System area About 50m2.
