Magnet System

• Magnet Type：Full Open C-shape, eddy current free, self-temperature control, Nd-Fe-B magnet
• Magnet Strength：0.20T
• Homogeneity：15cm DSV ≤8ppm(Vp-p)
• Gradient System : Gradient System: 20mT/m Gradient non-linearity：16cmx16cmx14cm ellipsoid <5%

Gradient System :

• Gradient System: 20mT/m
• Gradient non-linearity：16cmx16cmx14cm ellipsoid <5%

RF System

• Spectrometer type：Full digital
• Channel : 2 RF Amplifier
• Max Output： 1KW
• Amplifier coils：Transmitting Coils, Receiving Coils（elbow, Carpal, Knee, ankle）

Image System

• Computer System：Dual-core CPU
• Operation System：WINDOW XP
• Users Interface：WINDOWS English/Chinese interface
• CPU：≥2.8GHz
• Hard disk：C≥250Gbyte
• Memory：2048Mbyte
• Monitor：22" TFT display
• Image post processor and Analysis：synchronous filter、enhancement、zoom、parallel transport、cropping、negative、auto-window width-window adjustment words
• Image transport : DICOM3.0 standard, compatible PACS system

Scanning series

• Spin echo
• Fast spin echo
• Gradient Echo
• MRM, MRCP, MRU Fat suppressed sequence
• Water suppressed sequence
• Orthopedic software package

Scanning parameter

• Space resolution：≥0.47
• Max matrix：512x512
• Visual field FOV：90～180mm
• Scanning slice：Multi-angle（axial-plane、vertical plane、coronal section、any slant、multi-slice multi-angle）

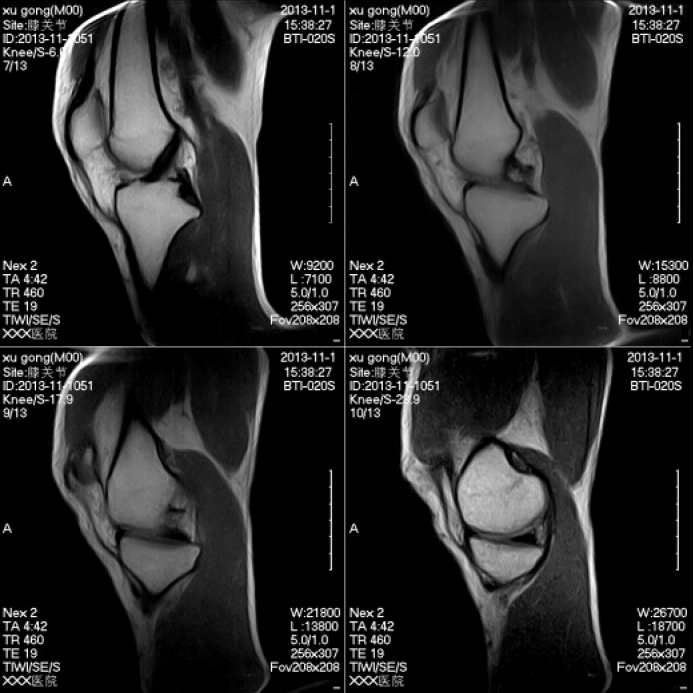

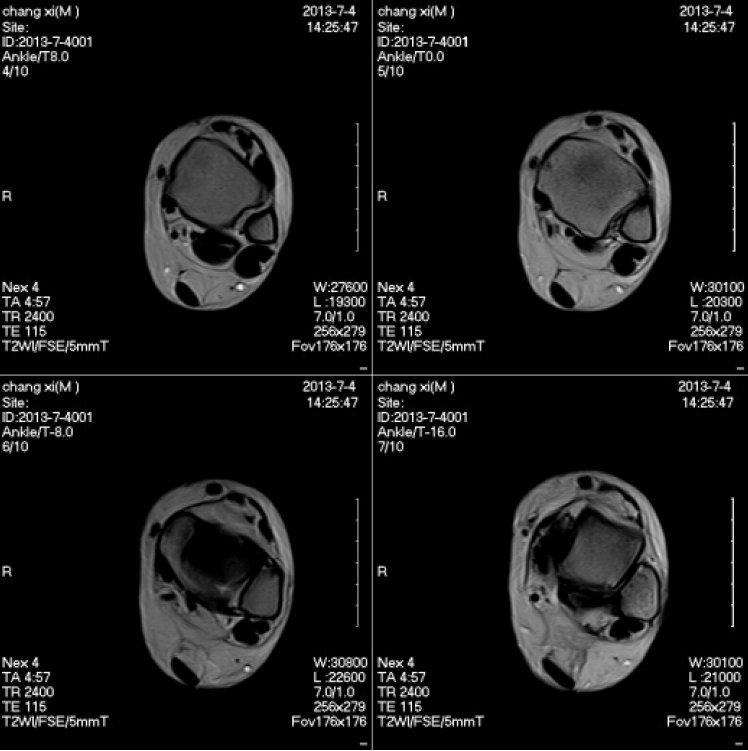

• Image type：T1 weighted imaging, T2 weighted imaging, T2*weighted imaging、proton density imaging, (MRCP, MRU, MRM), water suppressed imaging, fat suppressed imaging.

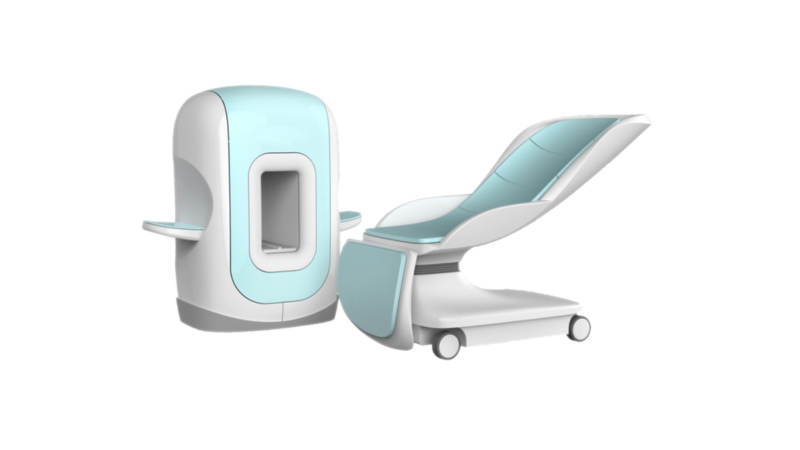

Patient System

• Examination chair MAX load：135kg Control up-down，in-out，rotation triaxiality examination chair two-way voice communication system between patient and doctor，background music， Observation Window.
• Installation requirement : Splice shielding device design，easy install Installation size：3m x3m Power supply：AC 220V、50Hz 3KVA

Installation requirement :

• Splice shielding device design，
• easy install
• Installation size：3m x3m
• Power supply：AC 220V、50Hz 3KVA
