Excellent price performance ratio

• Comprehensive application suite and powerful software included in standard configuration

• Patient friendly appearance : Most open C-shaped magnet
• Minimal sitting requirements : About 46 m²
• Low operating Costs : Permanent magnet – no helium
• Higher revenues : Attractive to more patients and referring physicians
• Excellent Return On-Investment : Decreased costs-optimized profitability
• Efficient and Professional service team : 24 hours service hot-line

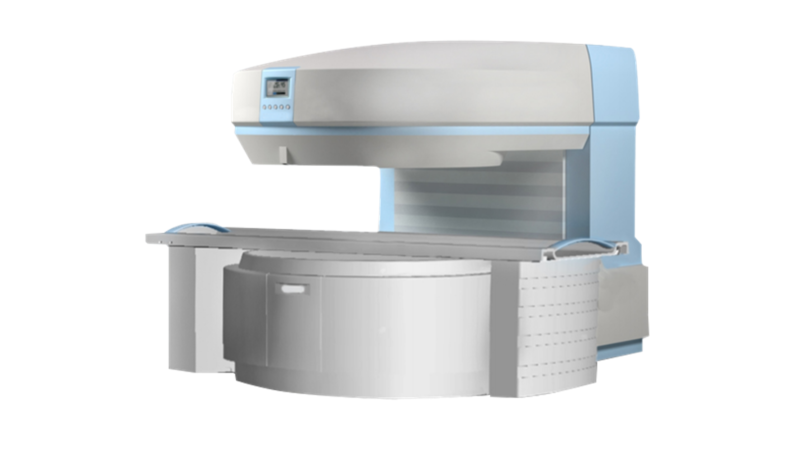

Specifications of BTI-030 System

• Magnet : Operating Field Strength: 0.30 Tesla (3000 Gauss)
• Magnet Type: Full open C-shape, eddy current free, self-temperature control
• Magnetic material : Permanent Nd-Fe-B magnet
• Homogeneity : (400mm DSV) ≤ 2.5ppm (Vrms)
• Shimming: Passive & active shimming
• Patient gap: 400mm
• Dimension: 1760cmx1200cmx1530cm
• Net Weight: 12,000KGS
• 2.0 Gradient System: Gradient strengh : max. 18mT/m (Gx/Gy/Gz)
• Slew rate : 60mT/M/ms (Gx/Gy/Gz)
• Gradient linearity : ＜5%(400mm×400mm×380mm)
• 3.0 RF System : Frequency range: DC～32MHz
• Spectrometer: Digital (Single channel)
• Transmitting coil : Flat planar coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil) Receiving
• Optional coils : spine coil, breast coil, ankle coil, etc.
• Max. Receiver bandwidth : 1.25Mhz
• Power of transmitter amplifier： 5KW

Gradient System:

• Gradient strengh : max. 18mT/m (Gx/Gy/Gz)
• Slew rate : 60mT/M/ms (Gx/Gy/Gz)
• Gradient linearity : ＜5%(400mm×400mm×380mm)
• 3.0 RF System : Frequency range: DC～32MHz
• Spectrometer: Digital (Single channel)
• Transmitting coil : Flat planar coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil) Receiving
• Optional coils : spine coil, breast coil, ankle coil, etc.
• Max. Receiver bandwidth : 1.25Mhz
• Power of transmitter amplifier： 5KW

RF System :

• Frequency range: DC～32MHz
• Spectrometer: Digital (Single channel)
• Transmitting coil : Flat planar coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil) Receiving
• Optional coils : spine coil, breast coil, ankle coil, etc.
• Max. Receiver bandwidth : 1.25Mhz
• Power of transmitter amplifier： 5KW

Computer System :

• Operating system : Windows2000/NT/XP
• CPU: ≥2.8GHz(Dual Core Processor)
• Hard disk: ≥160GB RAM : 1GB
• Display Device: ≥20'' TFT
• Network & laser printer interface :DICOM

• Software : BASDA BTI-030 Software

• Auto Pre-scan

• Pulse Sequence : Standard IR Spin Echo ( SE 2D/3D) Multi-slice multi-echo (MSME) Gradient Echo (GRE 2D/3D) Steady state process gradient echo( SSPGRE) Fast spin echo (FSE) Single shot fast spin echo(SSFSE) Multi shot fast spin echo (MSFSE) Inversion recovery (IR) Inversion recovery fast spin echo (IRFSE) Short time inversion recovery (STIR) Fluid attenuated inversion recovery ( FLAIR) MRM ,MRU ,MRCP TOF 2D/3D MRA Diffusion weighted imaging (DWI) Echo planar imaging(EPI)
• Image: Acquisition matrix: 64/128/256/512

• Resolution:
  • 1mm(head 24cm FOV 256X256)
  • 1.5MM(body 30cm FOV 256X256)
  • 0.5mm(head 24cm FOV 512X512)
  • 0.75mm( body 30cm FOV 512X512)

• Maximum display matrix : 1024x1024 FOV: 20 ～ 400mm

• Slice thickness : (2D/3D)Min. 1mm(1mm increment)

• Slice Orientation : Sagittal, coronal, transversal, any angle any oblique

• Image Type : T1 Weighted imaging, T2 weighted imaging, T2* weighted imaging, proton density imaging; Water Suppressed Image, Fat Suppressed Image, MRM, MRU, MRCP; Magnetic Resonance angiography (MRA), Diffusion Weighted Imaging (DWI)

• Patient Table System: Max. Patient load about 220kg; Available with laser light localizer for patient positioning Intercommunication between patient and operator: available

• Power Supply 3N～380/400V 50/60Hz 10KVA 10.0 Typical Layout : Magnet Room: About 30㎡(5m×6m); Equipment Room: About 12㎡(4m×3m); Control Room: About 4㎡(2m×2m); Total MRI-System area: About 46㎡.

• Typical Layout : Magnet Room : About 30 m2 (5m×6m);

• Equipment Room : About 12 m2 (4m×3m);

• Control Room: About 4 m2 (2m×2m);

• Total MRI-System area : About 46 m2
