• Supports all the Elisa methods of examination items, such as : Hepatitis A, B (2½ pairs) and C, AIDS, Torch 10 items, Sex hormone, Tumor cells, T3, T4, tsh, etc.

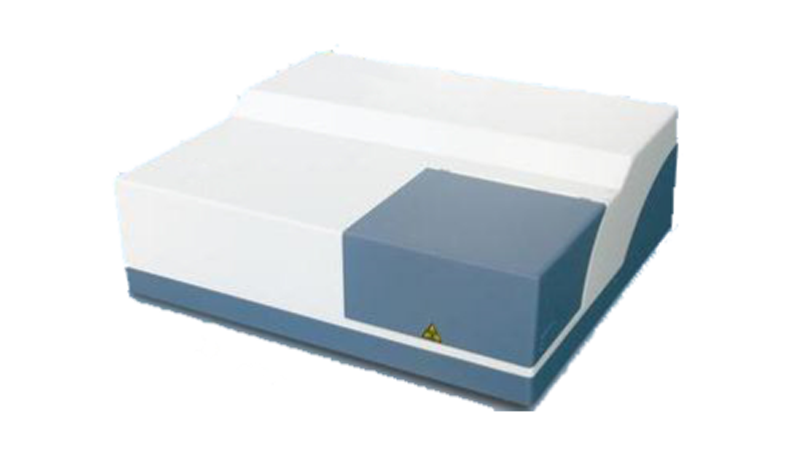

• KD 5033A enzyme-linked Immunosorbent Assay Instrument with Industrial computer-controlled, Large -screen LCD, has Excellent Performance of Accuracy, Reliability, Speed and Stability.

Technical Specifications :

Plate Type	:	48-hole, 96-hole micro plates or bars.
Light Source	:	Single, Halogen Tungsten Lamp, Average Life Expectancy ≥5000 hours
Detector	:	Silicon Photocell
Wave Length	:	400nm - 750nm

Optical Filter

:

Standard 405, 450, 492, 630nm. Other wavelengths, Optional.

Absorbance Range	:	0.000 - 4.000Abs
Measurement Method	:	Single, Dual-wavelength Automatic measurement
Calculation Mode	:	Open type qualitative determination and quantitative analysis
Repeatability	:	CV ≤0.3%
Stability	:	≤±0.003Abs
Resolution	:	0.001Abs
Linearity	:	0.01 or 2%
Reading Speed	:	≤6s / 96 well plate, Single wavelength
Vibration Plate	:	Mode 5 Grade speeds (from weak to strong) can be set, Time 0 - 240s adjustable

Power Supply

:

AC 220V±22V, 50±1Hz.

Computer Interface

:

USB Printer Interface, RS232

Winning Advantages:

• Extremely High Level of Repeatability and Stability in the Industry. Rich vibration plate feature.
• Instrument comes standard with four filters, 405, 450, 492, 630nm, other wavelengths optional.
• Rich, Professional and Flexible Workstation Software and Report Format. Meets all current Test items. Powerful Database and Quality Control Functionality.
• User can Modify, Increase or Decrease, or Custom Report Formats as needed.
