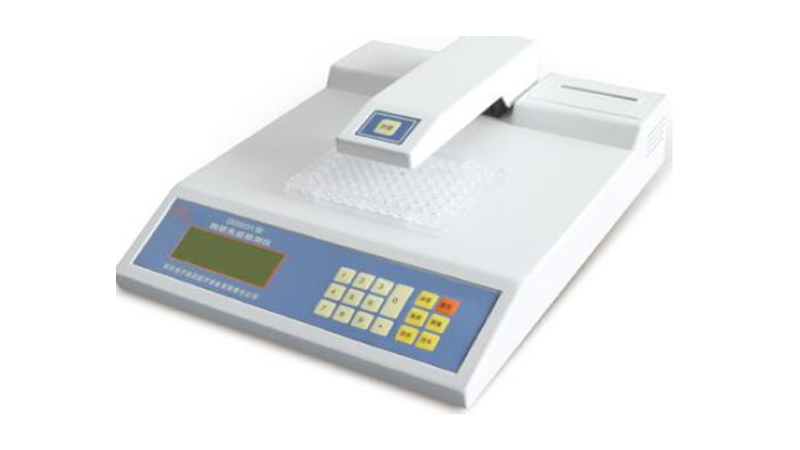

iD 5031 Semi Automatic Elisa Reader
- P/N method used to measure 2 ½ pairs in hepatitis B. Introduces two methods called S / CO (cut off). In the measuring process, Zero-adjustment and monitoring of absorption value can be done anytime without interrupting the measuring process.
Technical Specifications :
| Light source | : | Tungsten Halogen Lamp (6V 10W). Average Lifespan ≥5000 hours |
| Detector | : | Photomultiplier Tube |
| Microtiter Plate | : | Any Format |
| Wavelength range | : | 400 - 700nm |
| Filter | : | 450, 492, 630nm, Accuracy ±2nm, width ≤7nm, other wavelength (410 - 600nm) optional |
| Reading range | : | 0.000 - 3.000Abs |
| Measurement Method | : | Manual single - wavelength (vertical single-optical-channel) |
| Computing Model | : | Qualitative (S/CO, P/N, N/P, Inhibitory rate, etc) and Quantitative analysis |
| Repeatability | : | Standard coefficient of variation CV ≤1% |
| Stability | : | ≤±1% |
| Resolution | : | 0.001Abs (Display, Print); Inner calculating 0.0001Abs |
| Operating Model | : | Membrane keypad |
| Display | : | 4*12 LCD |
| Printer | : | Inbuilt |
| Power supply | : | AC220V±22v, 50Hz |
| Comment | : | Time, Date, Week, Doctor's name, Patient ID, Age, Sex, Focus, Transducer type, Transducer frequency, Gray scale, Avg. Value |
| Body Marks | : | 5 |
| Power Supply & Consumption | : | AC 110V,60Hz; AC 220V,50Hz . < 110 VA |
| Dimensions | : | 490x380x420mm (L x H x W) |
| Net Weight | : | approx. 9.5kg |
Winning Advantages:
- Supports all Elisa examination viz : Hepatitis A, B (2½ pairs) & C, AIDS, Torch 10 items, Sex hormone, Tumor cells, T3, T4, tsh, etc.
- Five indexes can be tested simultaneously.
- Memorizes the parameters set by the user.
- Prints the measured results automatically
- Novel and beautiful design. Portable. Easy to carry.
