Technical Specifications :

Ultrasonic Emulsification

Frequency	:	40kHz
Functional mode		Continuance, Pulse, Linear, Burst
Continuance		Emulsifying power Range: 0 ~ 100

Pulse

:

Frequency Range 1 ~ 99Hz

Linear	:	Emulsifying power linearly controlled by the footswitch, varies between 0 ~ 100%
Burst-Stopping Time	:	1.5 ~ 0s
Burst-Working Time	:	5 ~ 100ms
Maximum Vacuum	:	External fixation + 5 internal fixation
Maximum Flux Rate	:	40 ml/min

Irrigation / Aspiration

Flux Rate	:	0 ~ 40 ml/min
Reflux Rate		20 ml/min
Max Vacuum		0 ~ 500 mmHg

VIT (Vitrectomy)

Cutting Power Source	:	Air Pump
Reflux Rate		20 ~ 600/min, step 10/min
Max Vacuum		500 mmHg

Cautery

Maximum Power	:	10 W ± 20 % (200Ω)
Type		Bipolar
Power preset between		0 ~ 100%

Winning Advantages:

• All parts of the system are fully controlled and monitored by Microprocessor Technology,
• Smoothly and efficiently controlling the emulsifier process with digital frequency tracing technology,

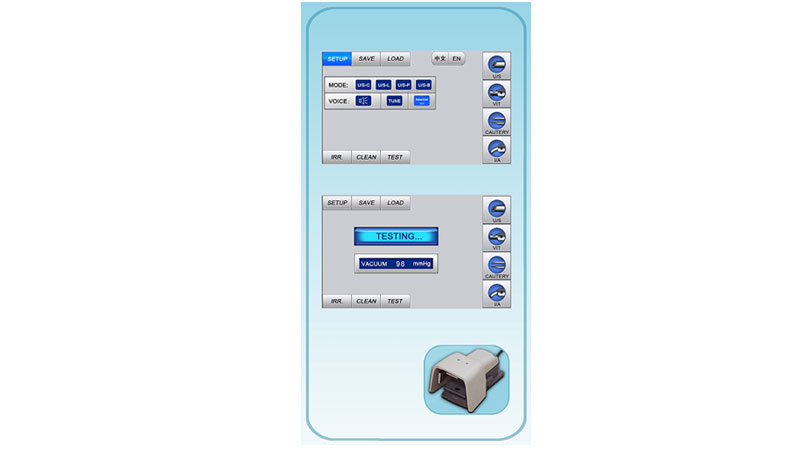

• Easy operation and user-friendly interface with large TFT touch screen and functional menu,
• Up to 10 sets of parameters preset meet different requirements and simplify the surgery operation,
• Auto test checks tubing and hand piece problems (e.g.: block or leakage),
• Peristaltic pumps gives complete control of aspiration flow rate as well as freedom from anterior chamber shallowing which results in stronger suction when working in I/A,
• Built-in Vitrectomy and Cautery,
• Intelligent Voice Reminder.
