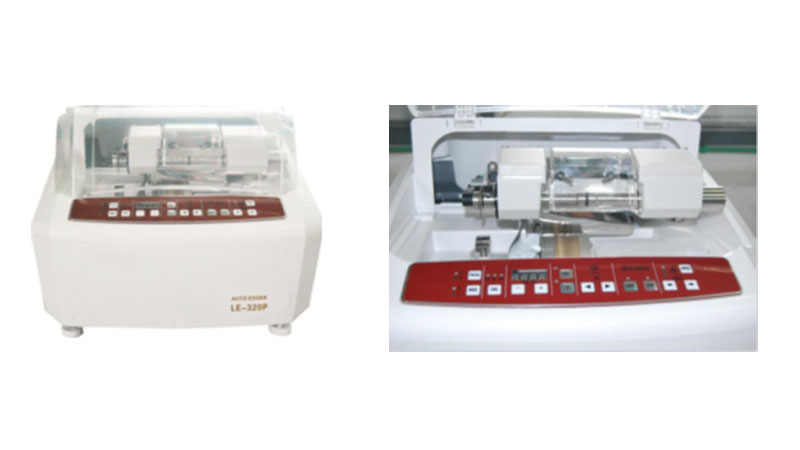

Auto Lens Edger ivE 32
Technical Specifications :
| Size of Diamond wheel (Diameter | : | Cr wheel 100x16, Glass wheel 100x14 |
| & Width of Grinding Wheel mm) | V groove wheel 100x23 Polishing sheel 100x11 | |
| Available Lens Range | : | 22 ~ 100mm |
| Processing Type | : | Pointy edges, Plat Band, Bevel Polishing |
| Lens Material | : | CR, Glass pc |
| Size in mm | : | 510 (l) x 490 (w) x 400 (h) |
| Weight | : | 49 kgs |
| Voltage | : | Voltage 220v ±10% frequency 50hz |
| Power | : | 500w |
Winning Advantages:
- With Automatic Emendation System
- Automatic Emendation when the machine starts assures the size of lens ( Left and Right ) is uniform and improves the precision.
