High Frequency Electrosurgical Unit iE 800
Technical Specifications :
| Maximum Output Power | : | 350W (iE800A), 300W (iE800B I), 200W (iE800B II ), 100W (iE800B III ) |
| Working frequency | : | 512 kHz / 300kHz |
| Working Environment | : | Voltage220±10%, Frequency 50Hz, Temperature 0-40°, Relative Humidity ≥85% |
| Monopolar function | : | |
| Cut output power | : | 0 - 300W |
| Coagulation output Power | : | 0 - 200W |
| Five cut mode | : | Pure, Blend1, Blend2, Blend3, Endoscopic cut |
| Four coagulation Mode | : | Forced, Soft, Spray, Biopolar |
| Bipolar function | : | |
| Cut output power | : | 0 - 300W |
| Coagulation output Power | : | 0 - 200W |
| Five cut mode | : | Pure, Blend1, Blend2, Blend3, Endoscopic cut |
| Four coagulation Mode | : | Forced, Soft, Spray, Biopolar |
| Monopolar/Bipolar Auto-Switch function |
| Peak Power System (PPS) | Auto adjust power | |
| Soft Coagulation | Controls coagulation operation, prevent carbide in soft electric coagulation | |
| Wider Impedance Recognition | (50-1800Ω) | |
| Long Bandwidth Design | (50-1800Ω), meets all kinds of operation environment, without frequent power adjustments | |
| Neutral Electrode Safety System (NESSY) | Automatic Alarm System, Continuously monitor neutral electrode | |
| Spray coagulation is good for superficial coagulation | ||
| Less smoke under power | ||
| ENDO-CUT available to work with different coagulation mode |
Applications:
General Surgery , Orthpaedics, obs & gynae, Urology, Gastroenterology, Cardiothoracic Surgery, Oncology Under Low Power, used in Neurosurgery，Microsurgery, ENT dept, Cosmedics division, Endoscopic surgery under Endoscope, Celoscope and Cystoscope.
Standard Accessories :
- Respiratory endoscopic surgery and Endoscopic surgery iE-800(W) : Unit, 2.2m Power cord, Bicolour Water-proof footswitch, Snares connector 2.5m, Bipolar Plate, 4 Nos. fuse (F5A 250v Φ5×20), Plate connector, User Manual, Quality Certificate, Installation and Debug Report and Warranty Card.
- Open surgery iE-800(W) : Unit, 2.2m Power cord, Bicolour Water-proof footswitch, Snares connector 2.5m, Disposable Bipolar Plate - 3 Nos, 4 Nos. fuse (F5A 250v Φ5×20), Disposable Plate connector, User Manual, Quality Certificate, Installation and Debug Report and Warranty Card. Any One of the Following : Disposable Pencil , Entended head, Resuable Pencil, Obs & Gyn electrodes, or Pin-electrode.

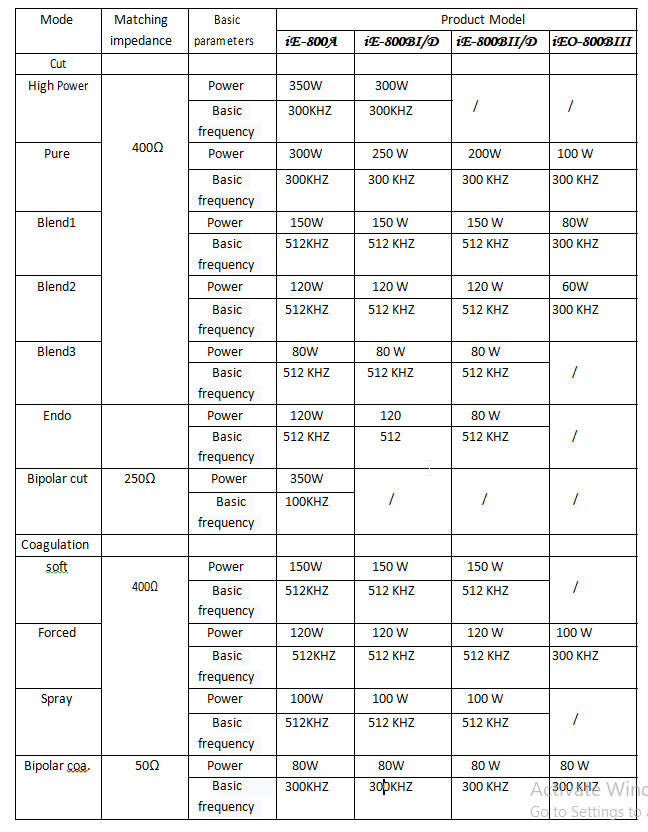

Model Parameters:
