Functions:

OSAHS instrument is indicated for the surgery of obstructive sleep apnea syndrome (snoring), tonsil ablation, tonsil solidification, turbinate hypertrophy scratches, nose bleeds solidification and so on.

Technical Specifications :

Voltage	:	220V±22V,50Hz±1Hz
Working Frequency	:	100KHZ
Output Power Level	:	0-9 levels adjustable, display on the screen

Max Output Power

:

Cut ≤250W, Placoag. ≤120W

Temperature of Cut and ablation tissues	:	≤54℃
Temperature of hemostasis and shrinkage	:	≤70℃
Working temperature	:	40-70℃
Relative humidity	:	10-85%
Physical Dimension	:	L40cm*W42cm*H16cm
Weight	:	10kg

Winning Advantages:

• Painless for Patients. Diet unaffect.
• Bare, Small and bleeding wound can be treated repeatedly.
• Suitable for tongue hypertrophy than other treatments.
• No damage to the function of mucosal surface.
• Best treatment for simple nose-piece hypertrophy.
• No medicine used and can avoid drug dependence.
• Short surgery time and quick recovery effect.
• Intelligent sound and light indication, reminder for different working status.
• Self - checking while power on.
• Intelligent digital control, prevent excessive treatment and temperature rising.
• Patented E.N.T. Plasma bipolar & soft electrode.
• Dual operation modes (Normal mode & Expert mode)

Applications:

Tonsillectomy, Uvula surgery, Turbinate plasma ablation, E.N.T Tumor resection surgery.

Standard Accessories :

• Cool Plasma Electrosurgical Unit for Urology iE-800 CI : Unit, 2.2m Power cord, Disposable Electrode, Bicolour footswitch, Electrode, 4 Nos. fuse 3A , RF Connector, User Manual, Quality Certificate, Installation and Debug Report and Warranty Card.
• Cool Plasma Electrosurgical Unit for E.N.T iE-800 CII : Unit, 2.2m Power cord, 6 Nos Disposable Electrodes, Bicolour Water-proof footswitch, Flow Controller, Controller Connector, 4 Nos. fuse (F5A 250v Φ5×20), User Manual, Quality Certificate, Installation and Debug Report and Warranty Card, Packing List.

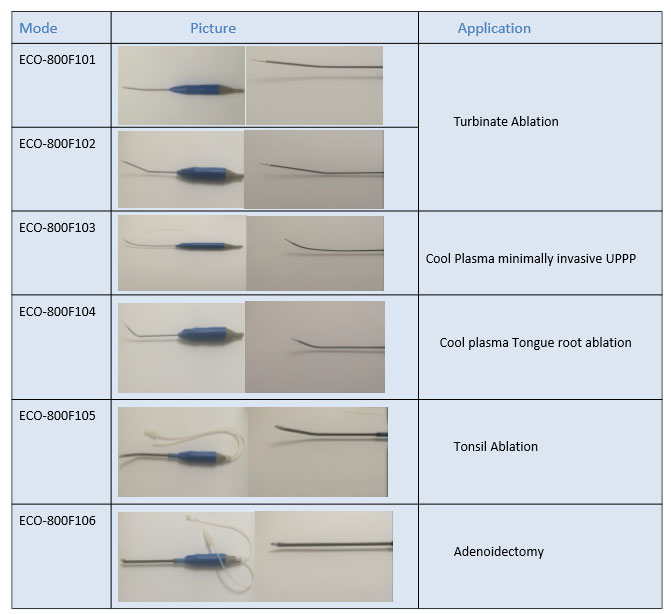

Electrodes:
