• Monitors : ECG, RESP, SPO2, TEMP, NIBP, IBP. Optional ETCO2

• Application : OPD, ICUs, OTs, Wards ( Coronary Care Unit, Neonatal, Deptts. )

Technical Specifications :

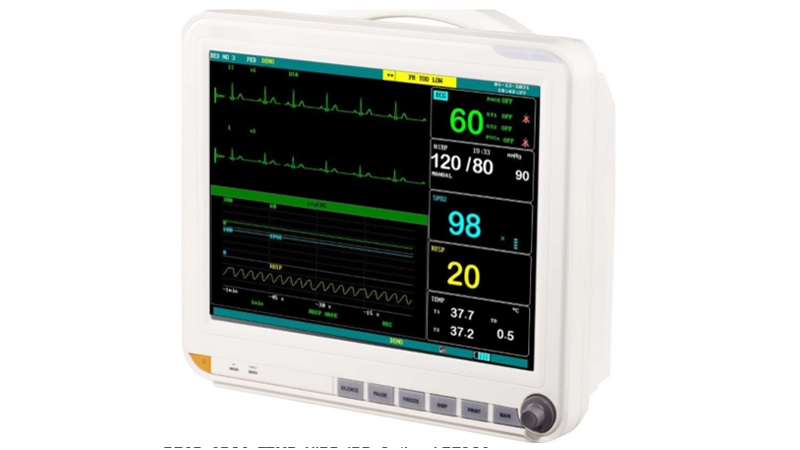

• 15 inch High Resolution color TFT LED display with 5 ECG Leads 5 waveforms and full monitoring parameters. Continuous working device. Internet access.
• Alarm : Audible, Visual and Description. Alarm indicator. Description is displayed on the screen.
• Lithium battery 12.6V/2200mAh. Recharge time ≥5 hours. Usage Time : ≥ 4 hours
• Environment Temp. : 5℃～+40℃. RH ≤85%. Atm. Pr. 700～1060hpa
• Supply power AC 100～250V, 50/60Hz. Power 11.1VA
• Interface colour of waveform set as per need. Playback 720 hours of data trends and ECG Waveforms.
• Automatically analyzes 13 kinds of arrhythmia waveform. Freezing and Storage Function.
• Recorder : Thermosensitive dot matrix, 57 mm, dia 40 mm/roll Thermo sensitive paper. Waveforms, words. Tracking 2 channels. Speed : 25mm/s

Winning Advantages:

• Compact, Lightweight and Portable. User Friendly Device. Standard network interface.
• Efficient resistance to interference of defibrillator and electrosurgical cautery.
• Capture Dynamic Waveforms. Easy to Recall. SPO2 can test for 0.1% weak. RA-LL impedence respiration. Built-in thermal recorder and battery. Records many waveforms and events.
• Patient parameters, waveforms, alarm messages, bed number, date, system status and error messages can be reflected from the screen. OxyCRG Dynamic View and short Trend Coexist Display.
• Maxi. 720 hours tabular and graphic trends of all parameters can be stored. Nurse calling system
• Suitable for Adult, Pediatric, Neonatal Patient. Connect to the Central Monitor System.
• 13 Type Arrhythmic analysis, Multi lead ECG Waveforms display in phase, real time ST segment Analysis, pacemaker detection drug calculation and titrationable. Anti-ESU, anti-defibrillator.
• Stores up to 1000 groups of NIBP data, HR/PR,TEMP, SPO2, RESP trends.
