Technical Specifications:

Display : 12.1 inch LED (0-90 degree rotation)

Resolution : 1024*768 pixels

Power supply and battery : 100 - 240 VAC, 50 / 60Hz; Input Power: 70 to 100 VA

Battery : Rechargeable lithium battery : 14.8 V / 2200 mAh; Charge Cycle : more than 500 times

Working time : 2 hours (optional larger battery for 4-5 hours)

Recorder (Built-in) : Thermal printer; Paper : Z-fold, thermo sensitive; Paper width: 112mm or 150mm; Print speed : 1/2/3 cm/min ; Trace : Max. 4 tracks ; Recording way : Real-time Recording ; Review printing

Alarm : Level : Low, Medium and High ; Indication : Auditory, Visual, delay of FHR alarm

Input Device : Knob, Keypad Input. Optional : Touch screen; Mouse / keyboard input

Trend & Reviewing : Cardiotocography (CTG) : Waveform review : 8640h; Vital signs: Trend graph and table : 2160h ; Waveform Review: 2h; Alarm Review : 2000 groups

Dimension and weight : 360 * 310 * 120mm; 5.3KG (excluding accessories)

NST Report (Option)

Based on Fischer evaluation method (monitoring time ≥ 20 min)

Automatic Score result :

Score	8 - 10 excellent
Score	5 - 7 suspicious
Score	0 - 4 foetus hypoxia

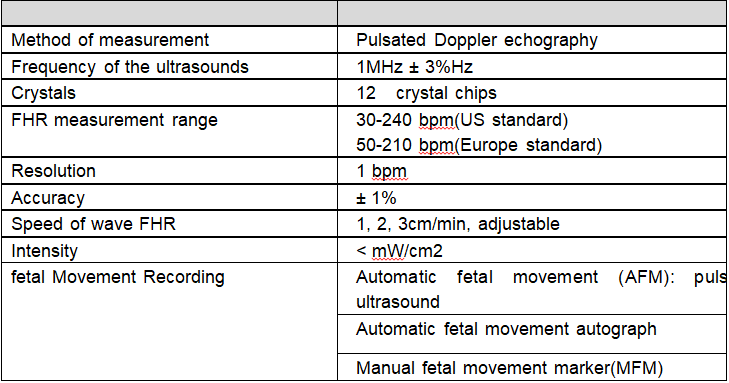

Ultrasound (FHR) and Fetal Movement (FM)

Ultrasound output specification

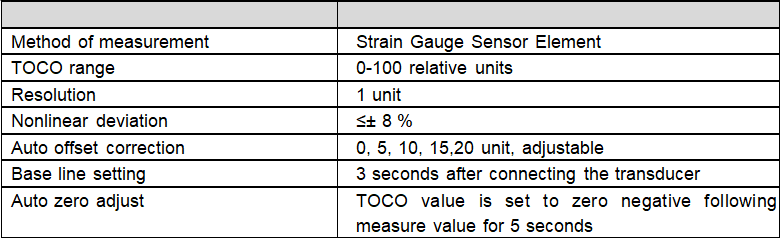

Tonometer Monitoring of the Uterine Activity (Toco)
