Technical Specifications:

Display : 10.4-inch LED (0-135-degree rotation)

Resolution : 800*600 pixels

Power supply and battery : 100-240 VAC, 50/60Hz; Adapter: 18 V/ 5A; Rechargeable li-battery: 7.4V/ 2200mAh

Recorder (Built-in) : Thermal printer; Paper: Z-fold, thermo sensitive : Paper width : 112mm

Print speed : 1/2/3 cm/min;Trace: Max. 4 tracks; Recording way: Real-time Recording;Review printing

Alarm Level : Low, Medium and High; Indication: Auditory, Visual, delay of FHR alarm

Input Device : Knob, Keypad Input. Optional : Touch screen; Mouse / keyboard input

System output & extensible interface : Network : RJ45;1USB

Trend & Reviewing : Cardiotocography (CTG) : Waveform review: 8640h

Dimension and weight : 36cm (W)*26cm (D)*8cm (H);2.8KG (excluding accessories)

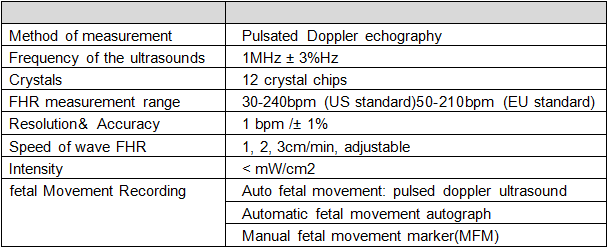

Ultrasound (FHR) and Fetal Movement (FM)

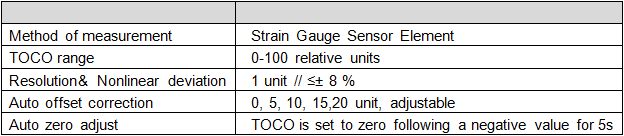

Tonometer Monitoring of the Uterine Activity (Toco)

NST Report (Option)

Based on Fischer evaluation method (monitoring time ≥ 20 min)

Automatic Score result :

Score	8 - 10 excellent
Score	5 - 7 suspicious
Score	0 - 4 foetus hypoxia
